Product Description
ALL THE TOOLS YOU NEED FOR SUCCESSFUL FISHING

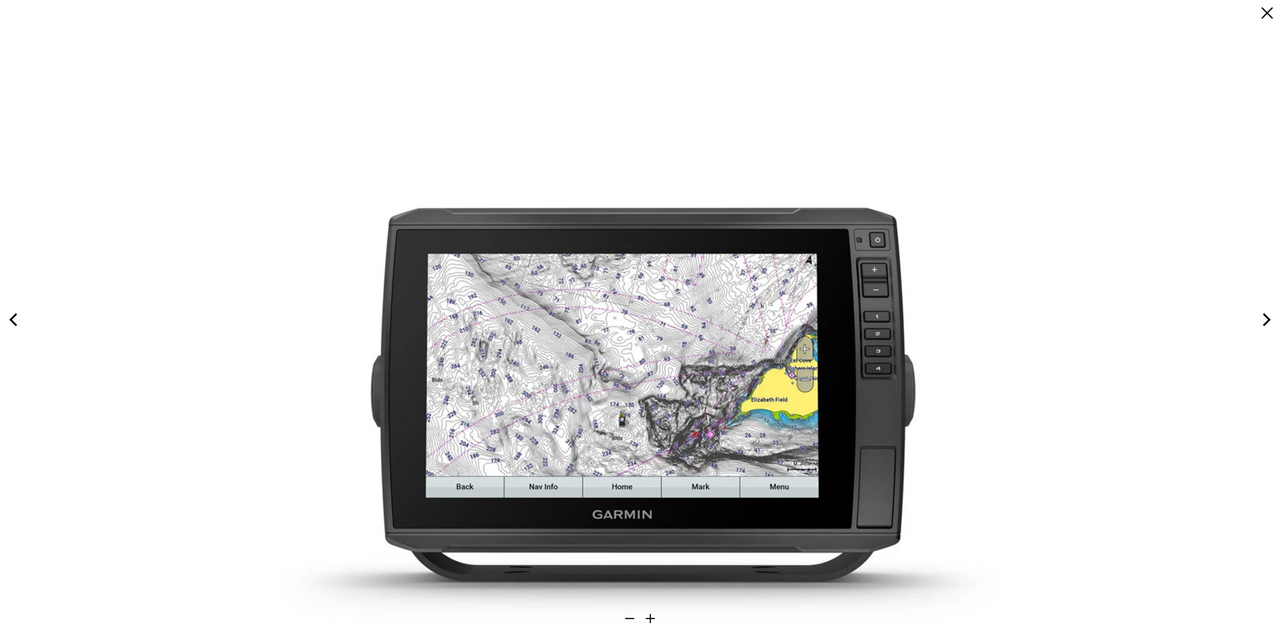

The sunlight-readable 10” touchscreen combo features preloaded coastal and inland Garmin Navionics+™ mapping, and the transducer bundle adds CHIRP traditional and Ultra High-Definition scanning sonars.
The keyed-assist 10” touchscreen puts fishfinding know-how at your fingertips.
See crisp images of structure and fish in stunning detail.
Navigate confidently with built-in Garmin Navionics+™ mapping.
Manage your marine experience from nearly anywhere with the ActiveCaptain® app1.
Connect your boat to share data, sonar and charts with your other compatible devices.
Explore your new favorite spot; create maps on the fly, and tailor them to fit your needs.
Better fishing comes built-in.
LIVESCOPE™ SONAR SUPPORT
ECHOMAP Ultra supports a variety of Garmin transducers (sold separately), including LiveScope all-seeing live sonar.
BUILT-IN UHD SONAR

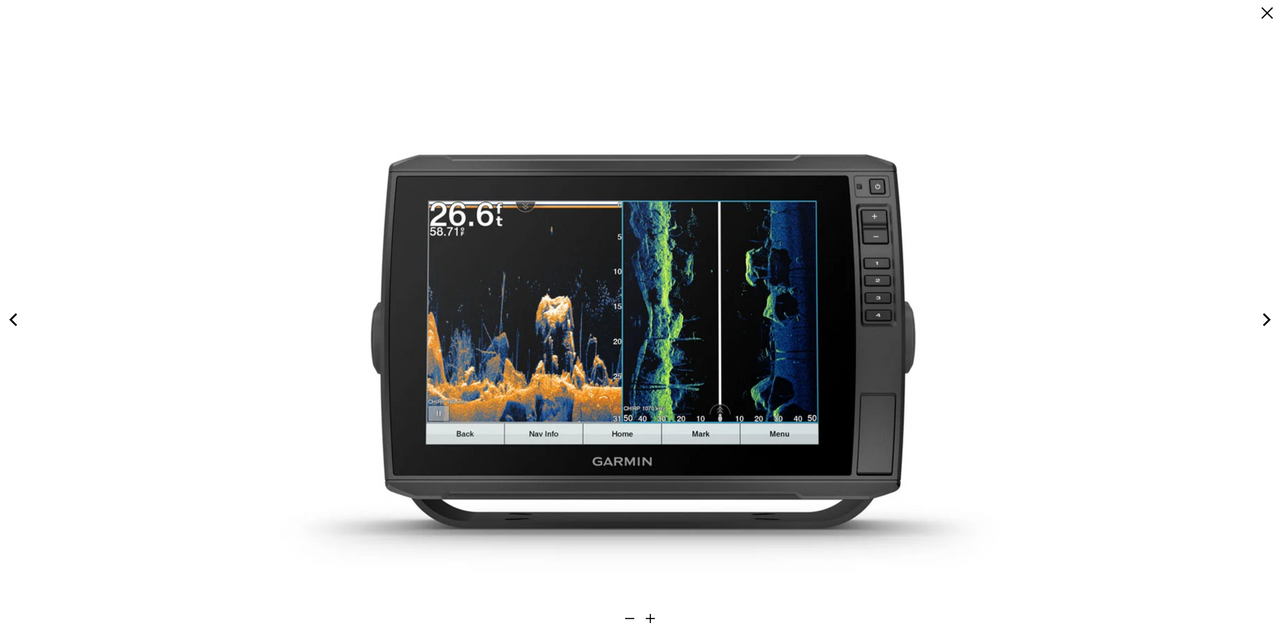

Built-in UHD sonar provides Garmin CHIRP traditional sonar plus Ultra High-Definition ClearVü™ and SideVü™ scanning sonars when paired with a compatible UHD transducer. Transducer bundled products include the GT56 transducers with three scanning sonar frequencies and 20% greater range for your UHD SideVü sonar.
VIVID COLOR PALETTES
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
PRELOADED CHARTS
Experience unparalleled coverage and detail with built-in Garmin Navionics+ integrated coastal and inland mapping with Auto Guidance+™ technology2. It comes with a 1-year subscription for downloadable daily updates and more.
OPTIONAL MAP UPGRADES
Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium cartography, featuring high-resolution relief shading, satellite imagery, sonar imagery and more.
QUICKDRAW CONTOURS
Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Garmin Quickdraw™ Community on the Garmin Connect™ app3.
Stay connected on and off the water.
NETWORK CAPABLE
If you have multiple compatible ECHOMAP Ultra 10” or 12” units or ECHOMAP Plus or UHD 7” and 9” units on your boat, you can share information — such as sonar, user data and charts — among them.
NMEA 2000® NETWORK COMPATIBILITY
Connect to your compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS, engine data, heading sensors — such as the SteadyCast™ sensor — and more from one screen.
ACTIVECAPTAIN APP
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw Community data and more1.
FORCE® TROLLING MOTOR COMPATIBILITY
Take control of the most powerful and efficient trolling motor available4, route it to waypoints, follow tracks and more from the screen of your chartplotter.
POWER-POLE® SHALLOW WATER ANCHOR
By networking select Garmin chartplotters with a Force® trolling motor and your compatible Power-Pole shallow water anchoring system, you can access advanced boat control features4 from your plotter, including smart anchor auto-deployment, smart anchor jog, auto stow, anchor drag detection and auto guidance5 end-of-route anchoring. Spend more time fishing, less time positioning.
CHARGE INTEGRATION FROM POWER-POLE
Your CHARGE Marine Power Manager from Power-Pole integrates with compatible Garmin chartplotters to help keep your battery power going longer and stronger on the water. You’re able to charge batteries on the run, monitor power use, select where power is allocated, control emergency starts and even transfer power between battery banks — all from your chartplotter display.
TAKE IT WITH YOU
Keep your ECHOMAP Ultra safe and secure. Cords plug directly into the quick-disconnect bail mount, which allows you to quickly install and remove your unit.
General | |
| Dimension | 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm) |
|---|---|
| Weight | 4.0 lbs (1.8 kg) |
| Water rating | IPX7 |
| Touchscreen | |
| Display Type | WXGA, IPS |
| Display Size | 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal) |
| Display Resolution | 1280 x 800 pixels |
| Mounting Options | Bail or flush |
| Input | Touchscreen with keyed assist |
Maps & Memory | |
| Accepts Data Cards | 2 microSD™ cards |
|---|---|
| Waypoints | 5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Sensors | |
| GPS | |
|---|---|
| Has built-in receiver | |
| Receiver | 10 Hz |
| NMEA 2000 Compatible | |
| NMEA 0183 Compatible | |
| Supports WAAS | |
Built-in Maps | |
| Built-in Auto Guidance+ | |
|---|---|
| Garmin Navionics+ Inland & Coastal | |
| Tide tables | |
Optional Map Support | |
| BlueChart g3 | |
|---|---|
| BlueChart g3 Vision | |
| LakeVü g3 | |
| LakeVü g3 Ultra | |
| Garmin Navionics+™ | |
| Garmin Navionics Vision+™ | |
| TOPO 100K | |
| Standard Mapping | |
| Garmin Quickdraw Contours | |
Chartplotter Features | |
| AIS | |
|---|---|
| DSC | |
| Supports Fusion-Link™ compatible radios | |
| ActiveCaptain® compatible | yes |
| Sailing Features | |
Electrical Features | |
| Power Input | 9 to 18 Vdc |
|---|---|
| Typical current draw at 12 Vdc | 2.8 A |
| Maximum current draw at 12 Vdc | 3.0 A |
| Maximum power usage at 10 Vdc | 24.4 W |
Sonar Features | |
| Displays sonar | |
|---|---|
| Power output | 600 W |
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |
| SideVü | Built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar | |
| LiveScope | |
Connections | |
| NMEA 2000® ports | 1 |
|---|---|
| NMEA 0183 Input (Rx) Ports | 1 |
| NMEA 0183 output (Tx) ports | 1 |
| Garmin Marine Network Ports | 2 (large connector) |
| 12-pin transducer ports | 1 LVS sonar; 1 12-pin scanning sonar |
