Product Description
PLOT YOUR PARADISE
FROM YOUR PARADISE
SEE YOUR CHARTS, VIEW ENTERTAINMENT AND MORE IN UP TO 4K RESOLUTION
CLARITY, CONTROL AND LUXURY AT THE HELM
LESS SEARCHING, MORE FISHING
OUR BEST BUILT-IN SONAR EVER
COMPLETELY INTEGRATED
BUILD AN EXTENSIVE, TOP-OF-THE-LINE ECOSYSTEM
THE SPEED YOU NEED
UP TO 7 TIMES FASTER PROCESSING POWER AND GIGABIT SPEEDS ON THE GARMIN BLUENET™ NETWORK
PARADISE STARTS HERE

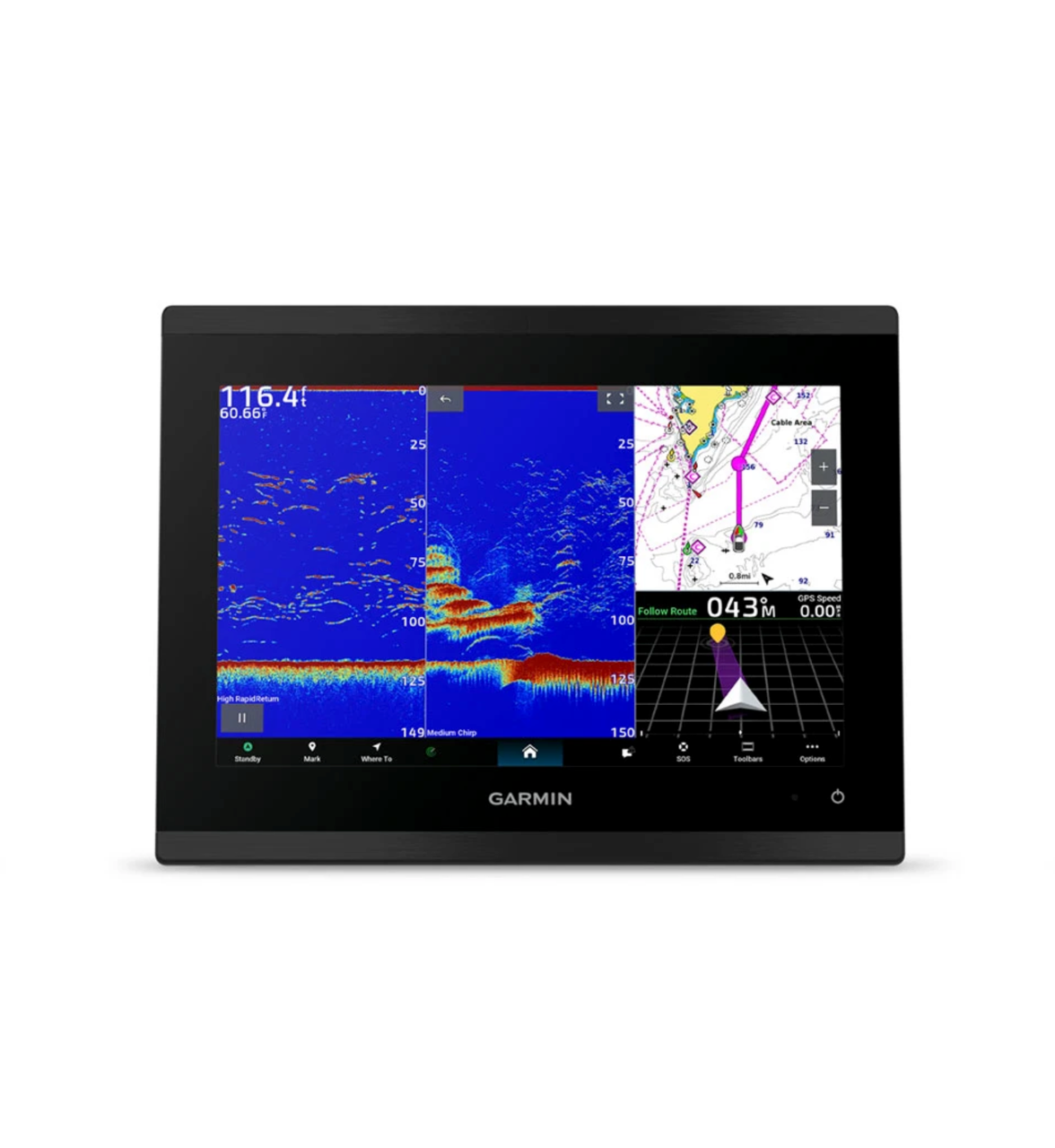

It’s the integrated high-resolution touchscreen chartplotter for captains and anglers who demand the best. Enjoy edge-to-edge clarity and luxury on a glass helm with premium design materials plus our best built-in sonar yet.
PREMIUM HIGH-RESOLUTION IPS SUNLIGHT-READABLE TOUCHSCREEN DISPLAY
UP TO 7 TIMES FASTER PROCESSING POWER THAN PREVIOUS GENERATIONS
SEE FISH LIKE NEVER BEFORE WITH OUR BEST SONAR EVER
PRELOADED GARMIN NAVIONICS+ CHARTS WITH AUTO GUIDANCE+™ TECHNOLOGY1
GIGABIT SPEEDS ON THE GARMIN BLUENET™ NETWORK
NETWORK WITH MULTIPLE CHARTPLOTTERS, CAMERAS AND MORE
WHAT YOU'LL LOVE
PREMIUM CHARTPLOTTER
The HD IPS sunlight-readable touchscreen display and edge-to-edge design provide a seamless and luxurious modern look.
FASTER. MUCH FASTER.
Processing power is 7 times faster than previous generations for superior performance; draw charts quickly, and calculate Auto Guidance+ routes1 with lightning speed with a Garmin Navionics+ subscription.
HIGH-DEFINITION SONAR
Fish in stunning high definition with built-in 1 kW xCHIRP and Garmin RapidReturn™ sonar. Excellent target separation helps you see crisp and clear fish targets all around.
GARMIN BLUENET NETWORK
Build extensive networks with multiple chartplotters, cameras, radars and sonars — and enjoy gigabit-speed networking.
ENTERTAINMENT OPTIONS
Enjoy audio and video integrations that allow you to show and hear the same video throughout the screens and speakers on your network.
CONNECT YOUR ECOSYSTEM
Take command through digital system integrations to monitor, automate and control your vessel. The chartplotter uses the NMEA 2000® network to connect to your compatible accessories.
LUXURY ON YOUR HELM
CONNECT
SOFTWARE UPDATES
Get wireless software updates via the ActiveCaptain® app with your compatible smartphone or tablet.
ENGINE MONITORING
Keep tabs on engine performance with extensive engine integration.
CUSTOM LOOK
Manufacturers can customize the homepage layout and splash screen for a brand tailored experience.
NAVIGATE
MAPPING
Navigate with optional Garmin Navionics+ charts that include Auto Guidance+ technology, daily updates and more1 (subscription required).
PREMIUM CHARTS
Get support for Garmin Navionics Vision+™ charts with premium relief shading and satellite imagery.
KNOW WHERE YOU ARE
Get your precise location with the built-in dual-frequency 10 Hz GPS.
AUTOPILOT
Control the autopilot with any compatible chartplotter on the network with autopilot integration.
INTEGRATE
CONNECT CAMERAS
Get extensive camera support and control to see footage directly on the chartplotter.
CONTROL WITH YOUR WATCH
Connect to your chartplotter with your compatible Garmin smartwatch.
WIRELESS CONNECTIVITY
Connect compatible devices with integrated Bluetooth® and ANT® technologies.
FISH MAPPING
Get comprehensive fishing data with the Fish Mapping™ feature from SiriusXM® Radio (accessory purchase and subscription required).
VERBAL COMMANDS
Use spoken commands to control the chartplotter through your compatible headset or quatix® smartwatch.
WEATHER-RESISTANT
The GPSMAP 9000xsv chartplotter is built for harsh marine conditions with an IPX7 water-resistance rating.
General |
|
| Dimension | 10.24" x 7.87" x 3.54" (26.0 cm x 20 cm x 9.1 cm) |
|---|---|
| Weight |
5.55 lbs (2.52 kg) |
| Water rating |
IPX7 |
| Touchscreen | |
| Display Type | WUXGA, IPS; Edge Lit backlight |
| Display Size | 8.54" x 5.34" x 10.1" diagonal (21.7 cm x 13.6 cm x 25.6 cm diagonal) |
| Display resolution | 1920 x 1200 pixels |
| Mounting Options | Bail, flat or flush |
| Input | Touchscreen |
| Polarized lens viewability | |
Maps & Memory |
|
| Accepts Data Cards |
2 microSD™ cards (on rear of product) |
|---|---|
| Supports USB card reader | |
| Waypoints |
5,000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Sensors |
|
| GPS | |
|---|---|
| GLONASS | |
| Galileo | |
| BeiDou | |
| Has built-in receiver | |
| Receiver |
10 Hz |
| NMEA 2000 Compatible | |
| NMEA 0183 Compatible | |
| Supports WAAS | |
| Supports multi-band, multi-constellation GPS | |
Built-in Maps |
|
| Built-in Auto Guidance+ | |
|---|---|
| Garmin Navionics+ Inland & Coastal | |
| Garmin Navionics+ (Coastal) | |
| Garmin Navionics+ (Inland) | |
| Tide tables | |
Optional Map Support |
|
| BlueChart g3 | |
|---|---|
| BlueChart g3 Vision | |
| LakeVü g3 | |
| LakeVü g3 Ultra | |
| Garmin Navionics+™ | |
| Garmin Navionics Vision+™ | |
| TOPO 100K | |
| Standard Mapping | |
| Garmin Quickdraw Contours | |
| Raster chart support | |
Chartplotter Features |
|
| Smart Mode Compatible | |
|---|---|
| AIS | |
| DSC | |
| Supports Fusion-Link™ compatible radios | |
| GCV Black Box Sonar Support | |
| ActiveCaptain® compatible |
yes |
| Supports voice commands | |
| GRID (Garmin Remote Input Device) compatible | |
| GRID 20 compatible | |
| Wireless Remote Compatible | |
| Sailing Features | |
| Spoken audio alerts | |
| OneHelm support | |
| Power Input | 10 to 32 Vdc |
|---|---|
| Typical current draw at 12 Vdc | 3.6 A |
| Maximum current draw at 12 Vdc | 4.14 A |
| Maximum power usage at 10 Vdc | 45 W |
Sonar Features |
|
| Displays sonar | |
|---|---|
| Power output | 1 kW |
| Traditional sonar (dual frequency/beam) | yes (dual 1 kW) |
| Supports built-in xCHIRP | |
| Supports built-in RapidReturn | yes (up to 2x) |
| ClearVü | |
| SideVü | |
| Panoptix™ sonar | |
| LiveScope | |
Networking & Connections |
|
| NMEA 2000® ports | 1 |
|---|---|
| NMEA 0183 Input (Rx) Ports |
1 |
| NMEA 0183 output (Tx) ports | 1 |
| Video input ports |
1 (BNC composite); 1 HDMI (HDCP compliant) |
| Video output ports |
1 HDMI |
| J1939 ports | 1 |
| Garmin BlueNet network ports | 2 |
| 8-pin transducer ports | |
| 12-pin transducer ports | |
| USB ports | yes (1x USB-C) |
| Bluetooth® pairing | |
| ANT® (Connectivity) | |
| Garmin Wi-Fi network (local connection) | |
| Wi-Fi frequency bands | 2.4 GHz & 5 GHz |
|
|
|
