About this product

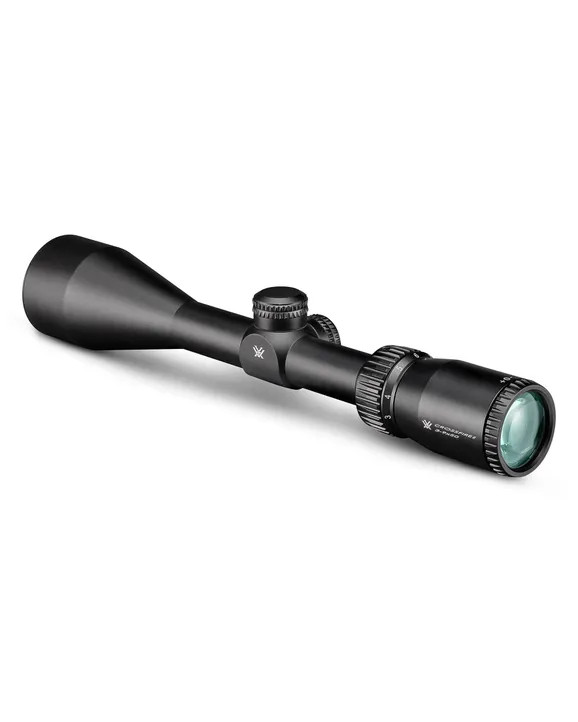

Whatever the reason you shoot straight-wall cartridges (like the .450 Bushmaster, 350 Legend, and .45-70 Government), the Crossfire® II 3-9x50 Straight-Wall is built to help you get the most out of these classic cartridges. With a Bullet Drop Compensator (BDC) reticle optimized for straight-wall hunting, you’ll enjoy accurate holdovers and rapid target acquisition. The one-inch tube provides an ideal combination of adjustment, size, and weight for a variety of hunting scenarios, and of course, you can count on the workhorse value of the Crossfire® II line to help you fill those tags, year after year.
Included in the Box
- Tethered Lens Covers
- Lens Cloth
Crossfire II Straight-Wall BDC MOA 3-9x50 Dimensions (in inches)
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 12.8 | 2.1 | 1.8 | 5.1 | 4.0 | 3.6 |
| Heights | |
|---|---|
| H1 | H2 |
| 2.24 | 1.71 |
Specifications
| Magnification | 3-9x |
|---|---|
| Objective Lens Diameter | 50 mm |
| Focal Plane | Second Focal Plane |
| Reticle | Straight-Wall BDC (MOA) |
| Eye Relief | 3.8" |
| Field of View | 32.0' - 12.9' @ 100 yds |
| Turret Style | Capped |
| Tube Size | 1 inch |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 15 MOA |
| Max Elevation Adjustment | 60 MOA |
| Max Windage Adjustment | 60 MOA |
| Parallax Setting | 100 yds. |
| Length | 12.8" |
| Weight | 18.4 oz |
Feature Tech
SD Optical System
High-quality optical system reduces chromatic aberration and delivers clean, bright, sharp images.
Fully Multi-Coated Lenses
Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
Nitrogen Gas Purged
Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions.
Fast-Focus Eyepiece
Allows for quick and easy reticle focusing.
Aircraft Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Low-Glare Matte Black Anodize
Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position.
Waterproof
Designed to withstand harsh weather conditions.
Fogproof
Designed to withstand a wide range of temperatures.
Shockproof
Designed to withstand the highest levels of recoil and impact.
Reticle
STRAIGHT-WALL BDC (MOA)
The Straight-Wall BDC MOA Reticle is optimized for popular straight-wall cartridges including .450 Bushmaster, .45-70 Government and 350 Legend. At a 100 yard zero, the Straight-Wall BDC offers holdovers for 150, 200, 250 and 300 yards when used with the .450 Bushmaster, .45-70 Government and 350 Legend cartridges.
