Product Description
About this product

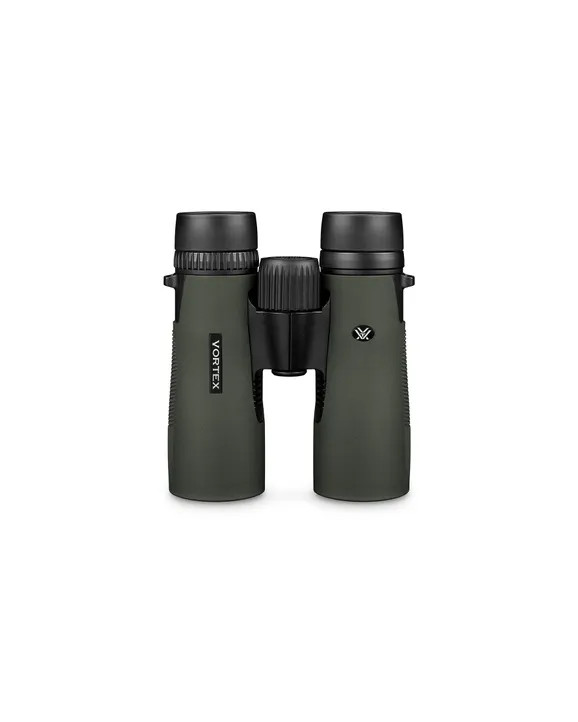

Made for hunters who demand hard-working, reliable optics, the Diamondback® HD delivers sharp resolution, enhanced contrast, and rugged durability. Lightweight yet tough enough to go the distance, it’s a strong lineup designed to handle any kind of hunt. A true workhorse, Diamondback® HD gives you the clarity, utility, and trust you need to consistently punch more tags.
Recommended uses
Hunting
Wildlife Observation
Manuals & parts
Specifications
| Magnification | 8x |
|---|---|
| Objective Lens Diameter | 42 mm |
| Eye Relief | 17.0mm |
| Angular Field of View | 7.5º |
| Close Focus | 5.0' |
| Interpupillary Distance | 55mm - 73mm |
| Linear Field of View | 393' @ 1000 yds |
| Height | 5.7" |
| Width | 5.1" |
| Weight | 21.8 oz. |
Feature Tech
HD Optical System
Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission.
Fully Multi-Coated Lenses
Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
Dielectric Prism Coatings
Multi-layer prism coatings provide bright, clear, color-accurate images.
True Open Hinge
Offers superior ergonomics while decreasing total weight and bulk.
Adjustable Eyecups
Twist up and down for comfortable viewing with or without eyeglasses.
Center Focus Wheel
Adjusts the focus of both binocular barrels at the same time.
Phase Correction
Coating on roof prism models enhances resolution and contrast.
ArmorTek®
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Rubber Armor
Provides a secure, non-slip grip, and durable external protection.
Argon-Gas Purged
Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions.
Waterproof
Designed to withstand harsh weather conditions.
Fogproof
Designed to withstand a wide range of temperatures.
Shockproof
Designed to withstand the highest levels of impact.
Tripod Adaptable
Compatible with a tripod adapter, allowing use on a tripod or car window mount.
