Product Description
About this product

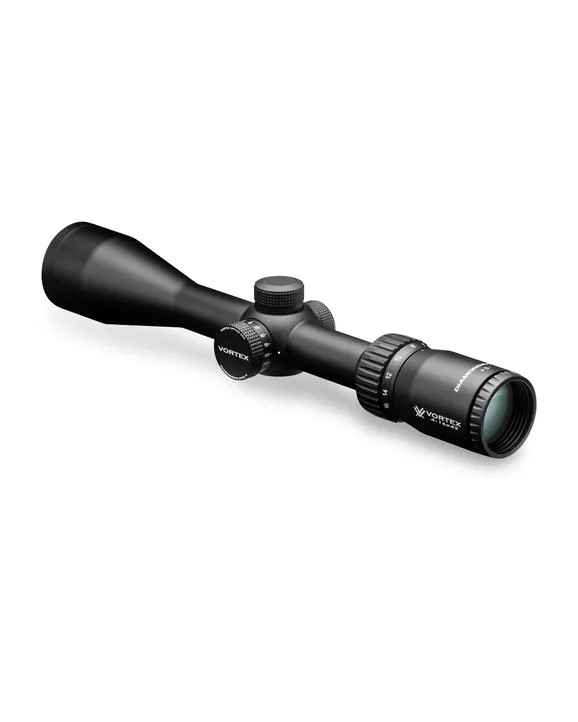

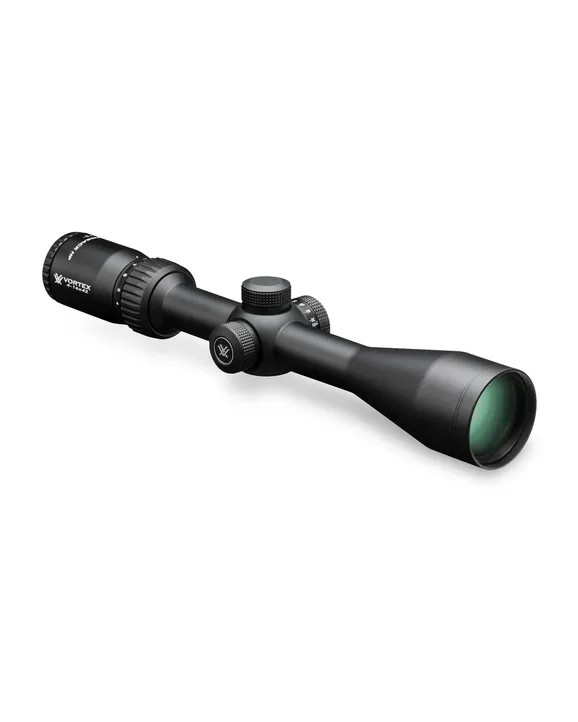

The Diamondback HP (High Performance) riflescope offers a full-on array of features that discerning hunters are sure to appreciate. Optically, these scopes hit the proverbial mark. XD extra-low dispersion glass increases resolution and color fidelity while XR fully multi-coated lenses maximize every minute of shooting light. The side focus/parallax adjustment is easily accessible while keeping a trim profile and allowing optimal mounting height. And, with a 4x zoom range, the Diamondback HP offers highly versatile magnification.
Included in the Box
- 4" Sunshade
- Protective Lens Caps
- Lens Cloth
Diamondback HP 4-16x42 Dimensions (in inches)
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 12.5 | 1.9 | 1.9 | 5.2 | 3.7 | 3.6 |
| Heights | |
|---|---|
| H1 | H2 |
| 2.0 | 1.69 |
Manuals & parts
Specifications
| Magnification | 4-16x |
|---|---|
| Objective Lens Diameter | 42 mm |
| Focal Plane | Second Focal Plane |
| Reticle | Dead-Hold® BDC (MOA) |
| Eye Relief | 4.0 inches |
| Field of View | 23.8-6.1 ft/100 yds |
| Turret Style | Capped |
| Tube Size | 1 inch |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 15 MOA |
| Max Elevation Adjustment | 80 MOA |
| Max Windage Adjustment | 80 MOA |
| Parallax Setting | 30 yards to infinity |
| Length | 12.5 inches |
| Weight | 18 oz |
Feature Tech
XD™ Optical System
Premium optical system and select glass elements deliver exceptional resolution, edge-to-edge sharpness, greatly reduce chromatic aberration and guarantee clean, bright, sharp, high-contrast images.
XR™ Lens Coatings
Premium anti-reflective coatings on all air-to-glass surfaces provide superior light transmission for exceptional clarity and low-light performance.
ArmorTek®
Ultra-hard exterior lens coatings defend against scratches, oil, and dirt.
Aircraft-Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Shockproof
Designed to withstand the highest levels of recoil and impact.
Reticle
Dead-Hold® BDC (MOA)
Customized dot design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.
