Product Description

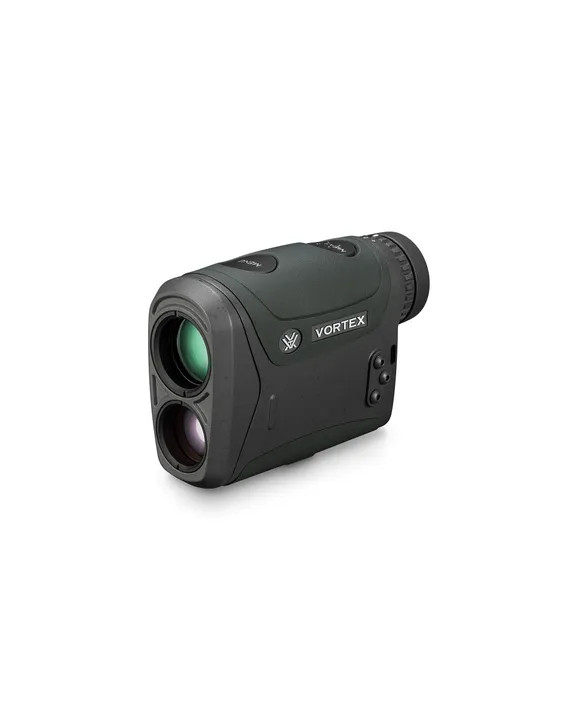

When the game comes down to inches the window of opportunity is small, the Razor® HD 4000 delivers the ranging data you need to make your first shot count. Its advanced modes adapt to any field conditions, providing consistent, repeatable performance when you can’t afford to miss. Compact and rugged. Capable of ranging reflective targets out to 4,000 yards. It's designed for serious hunters and shooters who demand performance that will never let them down.
| Magnification | 7x |
|---|---|
| Objective Lens Diameter | 25 mm |
| Eye Relief | 17.5mm |
| Angular Field of View | 6.5º |
| Linear Field of View | 341' @ 1000 yds |
| Range Reflective (yards) | Up to 4,000 yds. |
| Range Tree (yards) | Up to 2,500 yds. |
| Range Deer (yards) | Up to 2,200 yds. |
| Min Range | 5 yds. |
| Accuracy | .5 yds @ 100 yds. |
| Length | 4.4" |
| Height | 3.1" |
| Width | 1.7" |
| Weight | 9.9 oz. |
| Max Angle Reading | +/- 89º |
Feature Tech
Horizontal Component Distance (HCD): Displays the slope angle compensated distance to the target.
Line of Sight (LOS): Displays the actual line of sight range.
Scan Feature: Displays continuous distance readings while panning across a landscape.
Normal Mode: The standard mode providing the target's range with the strongest range result. Recommended for most situations.
First Mode: Displays the closest distance when ranging. Ideal for ranging a smaller target in front of other larger or more reflective objects.
Last Mode: Displays the farthest distance when ranging. Ideal for ranging a specific target behind a group of objects like brush, trees, rocks, etc.
Extended Laser Range (ELR) Mode: Ideal for ranging targets at extreme distances. A slightly longer response time allows greatly for extended range distances. Best used on a tripod.
Reticle
