Product Description
About this product

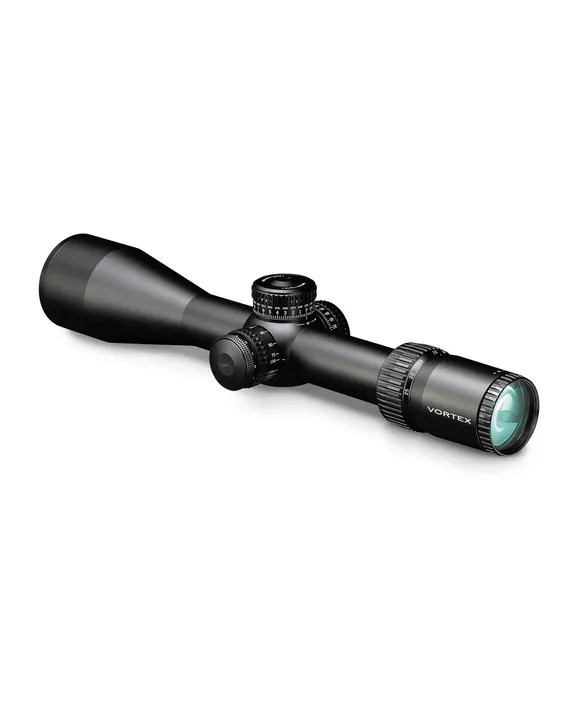

Strike Eagle® is your tactical powerhouse, delivering the versatility and optical performance to propel your shooting game higher. Rugged construction, great glass, advanced features—all to help you excel whether you’re run-and-gun shooting or engaging targets out to 1,000 yards. Strike Eagle® adapts to every challenge, driving your skills to places you never thought possible.
Strike Eagle 5-25x56 FFP Dimensions (in inches)
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 14.6 | 2.0 | 2.6 | 6.4 | 4.75 | 3.6 |
| Heights | |
|---|---|
| H1 | H2 |
| 2.5 | 1.8 |
Recommended uses
Long-Range Shooting
Competition
Recreational Shooting
Manuals & parts
Specifications
| Magnification | 5-25x |
|---|---|
| Objective Lens Diameter | 56 mm |
| Focal Plane | First Focal Plane |
| Reticle | EBR-7C (MOA) |
| Eye Relief | 3.8" |
| Field of View | 24.0' - 5.2' @100 yds |
| Turret Style | Exposed |
| Tube Size | 34mm |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 25 MOA |
| Max Elevation Adjustment | 110 MOA |
| Max Windage Adjustment | 78 MOA |
| Parallax Setting | 15 yards to infinity |
| Length | 14.6" |
| Weight | 30.4 oz |
Feature Tech
XD™ Optical System
Premium optical system delivers impressive resolution, edge-to-edge sharpness, greatly reduces chromatic aberration, and guarantees bright, high-contrast images.
RevStop® Zero System
Patented streamlined design offers an easy to set, reliable return to zero after turret adjustments.
Fully Multi-Coated Lenses
Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
Exposed Locking Elevation Turret
Integrated locking mechanism prevents accidental adjustment. Elevation turret provides fast, accurate, easily read elevation adjustions.
First Focal Plane Reticle
A first focal plane reticle is located within the riflescope near the windage and elevation turrets. The scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications. The reticle’s size will appear larger at high magnifications and smaller at low magnification.
Illuminated Reticle
Provides precise aiming under low-light conditions.
Single-Piece Tube
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Nitrogen Gas Purged
Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions.
Fast-Focus Eyepiece
Allows for quick and easy reticle focusing.
Throw Lever
The included throw lever can be installed for quick and easy magnification adjustments.
Aircraft Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
ArmorTek®
Ultra-hard exterior lens coatings defend against scratches, oil, and dirt.
Low-Glare Matte Black Anodize
Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position.
Waterproof
Designed to withstand harsh weather conditions.
Fogproof
Designed to withstand a wide range of temperatures.
Shockproof
Designed to withstand the highest levels of recoil and impact.
Reticle
EBR-7C (MOA)
Hash-marked reticle using MOA or MRAD-based subtension lines and floating wind hold dots for ranging, holdover, and windage corrections. Letters refer to reticle subtensions listed in chart below.
