Product Description
About this product

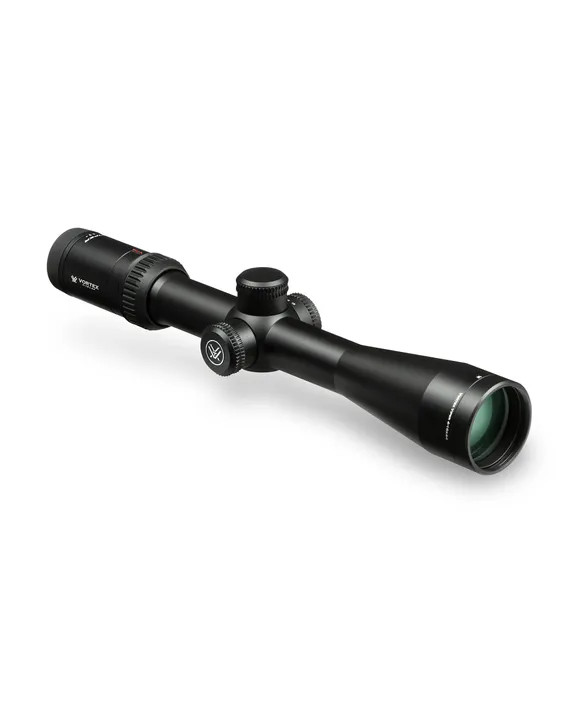

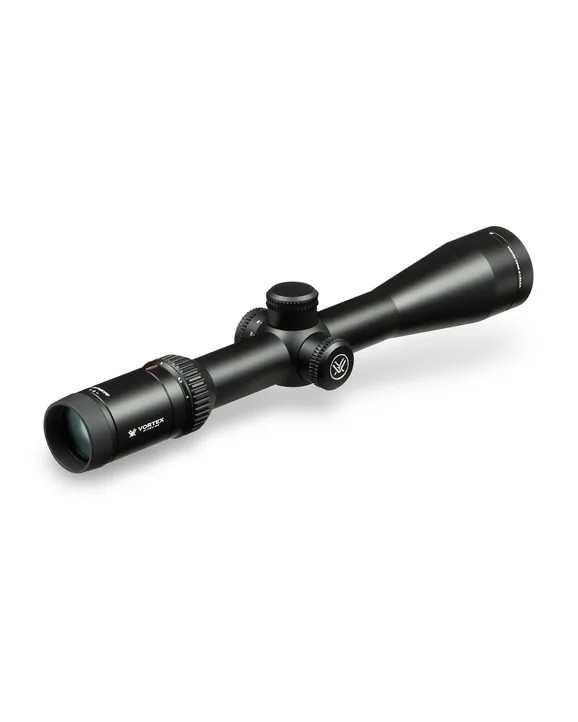

Vortex Viper HS riflescopes offer hunters and shooters an array of features sure to be well received. The advanced optical system, highlighted with a 4x zoom range, provides magnification versatility. A forgiving eye box with increased eye relief gets shooters on target quickly and easily. Built on an ultra-strong 30mm one-piece machined aluminum tube, the Viper HS delivers increased windage and elevation travel for optimal adjustment.
Included in the Box
- Protective Lens Caps
- 4" Sunshade
- Lens Cloth
Viper HS 4-16x44 Dimensions (in inches)
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 13.41 | 2.13 | 2.19 | 5.63 | 4.2 | 3.6 |
| Heights | |
|---|---|
| H1 | H2 |
| 2.03 | 1.65 |
Manuals & parts
Specifications
| Magnification | 4-16x |
|---|---|
| Objective Lens Diameter | 44 mm |
| Focal Plane | Second Focal Plane |
| Reticle | Dead-Hold® BDC (MOA) |
| Eye Relief | 4.0 inches |
| Field of View | 27.4-7.4 ft/100 yds |
| Turret Style | Capped |
| Tube Size | 30mm |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 12 MOA |
| Max Elevation Adjustment | 50 MOA |
| Max Windage Adjustment | 50 MOA |
| Parallax Setting | 50 yards to infinity |
| Length | 13.41 inches |
| Weight | 19.2 oz |
Feature Tech
Aircraft Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Armortek®
Ultra-hard exterior lens coatings defend against scratches, oil, and dirt.
XR™ Plus Lens Coatings
Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
XD™ Optical System
Premium optical system delivers impressive resolution, edge-to-edge sharpness, greatly reduces chromatic aberration, and guarantees bright, high-contrast images.
Shockproof
Designed to withstand the highest levels of recoil and impact.
