Product Description
Want to extend your effective shooting range at distances where bullet drop and wind drift become critical? Take a look at the Viper HS LR riflescope. The LR stands for long range - and we mean it. This riflescope features an exposed target-style elevation turret built for dialing elevation at extended ranges. The capped windage turret maintains the scope’s sleek lines and prevent it from hanging up on clothing, rifle cases or pack scabbards.
Viper HS LR riflescopes feature an advanced optical system highlighted with a 4x zoom range for magnification versatility. A forgiving eye box with increased eye relief gets shooters on target quickly and easily. Built on an ultra-strong 30mm one-piece machined aluminum tube for increased windage and elevation travel and optimal adjustment.
Included in the Box
- 4" Sunshade
- Protective Lens Caps
- Lens Cloth
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 15.41 | 2.60 | 2.58 | 6.52 | 5.30 | 3.6 |
| Heights | |
|---|---|
| H1 | H2 |
| 2.26 | 1.65 |
| Magnification | 6-24x |
|---|---|
| Objective Lens Diameter | 50 mm |
| Focal Plane | First Focal Plane |

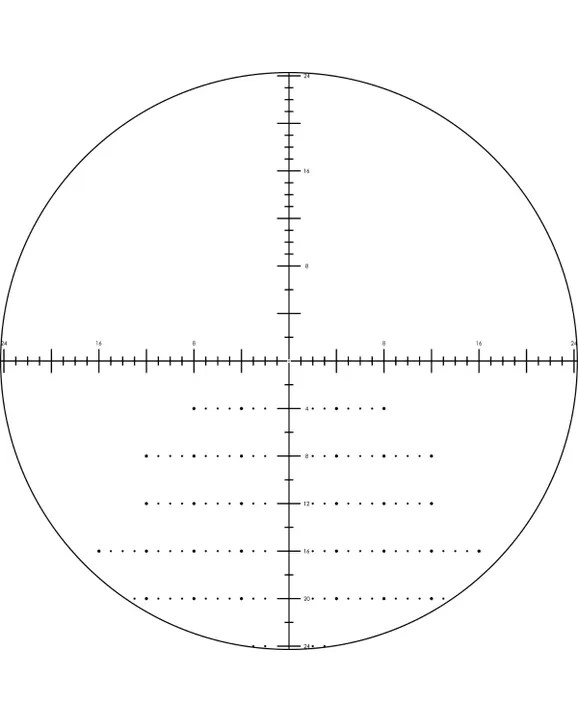

| Reticle | XLR (MOA) |
| Eye Relief | 4.0 inches |
| Field of View | 17.8-5.1 ft/100 yds |
| Turret Style | Tactical |
| Tube Size | 30mm |
| Adjustment Graduation | 1/2 MOA |
| Travel Per Rotation | 12 MOA |
| Max Elevation Adjustment | 65 MOA |
| Max Windage Adjustment | 42 MOA |
| Parallax Setting | 50 yards to infinity |
| Length | 15.41 inches |
| Weight | 21.8 oz |
| Elevation Travel Per Rotation | 24 MOA |
| Windage Travel Per Rotation | 12 MOA |
Feature Tech
Reticle
